Ductility is a fundamental concept in material science that explains why some materials (like metals) can flex or stretch significantly under stress, while others (like glass) snap suddenly. In this article, we’ll explain what ductility is, how it’s measured, why it matters, and which factors influence it.
Definition of Ductility
Ductility is a material’s ability to undergo plastic deformation in tension before fracture. In simple terms, a ductile material can be stretched a long way without snapping—think of copper being drawn into wire. By contrast, brittle materials like glass tend to crack or shatter after very little deformation. In materials science, plastic deformation is a permanent change in shape. This differs from elastic deformation, which is recoverable when the load is removed. Ductility is closely related to plasticity but more specific: plasticity is the general capacity for permanent deformation under any mode (tension, compression, or shear), while ductility refers to that capacity in tension.
From an atomic perspective, the high ductility of many metals comes from non-directional metallic bonding and the availability of slip systems that allow dislocations to move. With stress applied, dislocation glide lets metallic crystals accommodate plastic strain, so metals often bend or stretch rather than fracture. By contrast, ceramics and glass have directional ionic or covalent bonds and very limited slip, so under tension they tend to crack before appreciable plastic flow. However, not all metals are ductile at room temperature (e.g., some BCC metals, high-carbon steels, and metallic glasses can be relatively brittle), and heated glass bends mainly by viscous flow above its glass-transition temperature—not by metallic-style ductility.
Measurements for Ductility

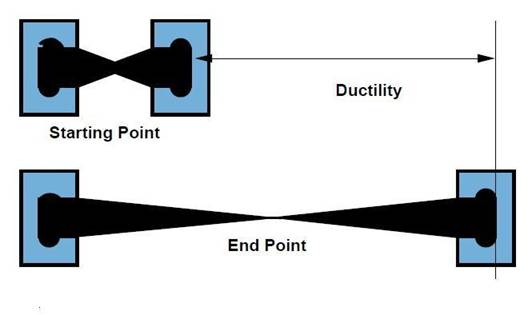

Tensile testing is the most common way to quantify ductility: a specimen is loaded in uniaxial tension to fracture, and ductility is reported as percent elongation at break and percent reduction of area.
Percent elongation at break (A%)
The percentage increase in gauge length at fracture: A% = (Lf − L0)/L0 × 100%, where L0 is the original gauge length and Lf is the final length at break. A higher A% indicates greater tensile ductility.
Percent reduction of area (RA%)
The percentage decrease in cross-section at the fracture location: RA% = (A0 − Af)/A0 × 100%, where A0 is the original area and Af is the minimum area at the break. Large RA% reflects pronounced necking and strong post-necking ductility. (Less sensitive to gauge length; not ideal for very thin sheet.)
Both measures are typically reported as part of a tensile test. For instance, a steel sample might be described as having, say, 20% elongation and 60% reduction of area at break – indicating a ductile behavior. In contrast, a brittle ceramic might show only 1% elongation and essentially 0% area reduction (it breaks almost without thinning). The larger the elongation and area reduction, the more ductile the material.
Another way to visualize ductility is on a stress-strain curve, which is a graph obtained from the tensile test. Stress (force per unit area) is plotted against strain (relative deformation). Key points on this curve include:
Young’s Modulus (E): the slope of the linear elastic region; a measure of stiffness.
Yield Strength (σᵧ): the onset of plastic deformation (often defined by the 0.2% offset method when no sharp yield point exists).
Ultimate Tensile Strength (UTS): the maximum engineering stress. Beyond UTS the specimen necks; fracture occurs later, typically at a lower engineering stress.
Fracture Point : where the specimen finally breaks.
Representative stress-strain curves for a ductile material (blue) versus a brittle material (red)
The ductile material’s curve shows a long plastic region after yielding, indicating it can sustain large strain before fracture. By contrast, the brittle material’s curve ends near the yield point, with little to no plastic region. In summary, on an engineering stress–strain graph (for a stated gauge length), ductility is reflected by the total strain to fracture—long for ductile materials, short for brittle ones. However, the apparent fracture strain depends on the chosen gauge length, and once necking begins the deformation localizes, so the engineering curve is not a direct measure of post-necking ductility. For that reason, specifications typically report percent elongation at break (A%) together with percent reduction of area (RA%).
What Is the Difference Between Ductility and Malleability?
Ductility is a material’s ability to stretch in tension without breaking; we quantify it with percent elongation or reduction of area from a tensile test. If a metal can be drawn into wire, it’s ductile. Malleability is a material’s ability to deform in compression—to be hammered, rolled, or pressed into sheet—without cracking; we judge it with bend/flattening/cupping tests or by how much thickness reduction it can tolerate.
In practice: gold, copper, and aluminum are both highly ductile and malleable (great for wire and sheet). Lead is very malleable but only moderately ductile (easy to roll into sheet, poorer as fine wire). Magnesium is limited in malleability at room temperature, while zinc becomes more malleable when warmed. For manufacturing, pick ductile alloys for drawing, deep stretching, and pull-dominated features; pick malleable alloys for rolling, stamping, and forging where compression dominates. Temperature and crystal structure shift both properties. Quick rule: ductility = tension/wire; malleability = compression/sheet.
Why Ductility Matters
Ductility is the quiet workhorse behind both manufacturability and in-service safety. In the factory, it allows metals to be rolled into sheet, drawn into wire, and forged without cracking. In the field, it enables components to absorb energy, redistribute stresses, and provide warning before failure.
Ductile Materials for Manufacturing
High ductility generally means a material is workable: it can be forged, rolled, drawn, or extruded into various shapes without cracking. Low ductility (brittleness) means the material is difficult to deform and is better suited to processes like casting or machining (where the material is not forced to change shape plastically too much).
Forging and Rolling: These processes deform solid metal into shape—by hammering (forging) or passing between rolls (rolling). Ductile metals tolerate the large plastic strains involved. In practice, steel slabs/blooms are hot-rolled into sheet, plate, and structural shapes such as I-beams, and aluminum is readily forged into components—the metal flows under compressive loads. By contrast, brittle alloys like cast iron tend to crack under heavy deformation, so they’re usually shaped by casting to near-net form.
Extrusion and Wire/Bar Drawing: Extrusion pushes metal through a die to make long, constant-cross-section products; wire/bar drawing pulls solid stock through a die to reduce diameter. Both rely on plastic flow. Ductile alloys such as aluminum, copper, and low-carbon steel can be extruded into tubes and profiles (e.g., window frames, heat-sink sections) and drawn into fine electrical wire. Materials without sufficient ductility at the processing temperature tend to check or crack at the die, which is why glass or ceramics aren’t extruded/drawn in the solid state; their fibers are melt-drawn instead.
Deep Drawing: Deep drawing forms axisymmetric cups and cans by forcing sheet into a die with a punch; the flange feeds inward while the walls thin slightly. Adequate ductility prevents splitting and wrinkling. Aluminum beverage-can bodies are the classic example.
Sheet-Metal Bending & Stamping: General bending and stamping of body panels and enclosures demand ductility to avoid edge cracking and orange-peel when the sheet is stretched in the die. Steel and aluminum grades are tailored for formability so complex shapes (e.g., a car hood) can be stamped without failure.
Metal 3D Printing (AM): Ductility still matters. As-printed parts—especially from laser powder bed fusion (LPBF)—can show reduced ductility due to fine, textured microstructures, residual stresses, and porosity. Stress relief and hot isostatic pressing (HIP), often followed by a light heat treatment, restore ductility and reduce cracking risk; alloys such as Ti-6Al-4V and AlSi10Mg can then deliver useful in-service ductility.
Ductile Materials for Real-World Applications
Ductility isn’t just a lab metric—it directly affects performance in real-world structures, vehicles, and equipment. Here’s why it matters in engineering and design:
Preventing Sudden Failure and Improving Safety: Ductile materials fail gradually: they yield and absorb energy before fracture, providing visible warning and allowing loads to redistribute. In buildings, this is why structural steel is favored—an overloaded beam will bend rather than snap. Reinforced concrete follows the same logic: embedded steel rebar adds ductility so members can flex under seismic demand instead of cracking apart.
Energy Absorption in Impacts (Seismic and Crash Applications):Under dynamic loads, ductility turns impact energy into plastic work. Steel frames dissipate earthquake forces through yielding, and automotive crumple zones in steel or aluminum fold in a controlled way to lower cabin deceleration. Modern body structures balance strength with ductility (e.g., DP/TRIP steels), and aerospace Al/Ti alloys retain enough ductility for bird-strike, pressurization, and cold-soak tolerance.
Structural Resilience and Redundancy:Ductile systems can keep carrying load after local yielding by spreading stresses to neighboring members, reducing the chance of progressive collapse. That’s why bridges use ductile steels and why pipelines and cables are designed to bend or dent under ground movement or overload rather than rupture.
Factors That Affect Ductility
Ductility isn’t fixed under all conditions. Here are the main factors that affect it:
Temperature: Ductility is highly temperature-dependent. Higher temperatures increase atomic mobility and dislocation motion, enabling plastic flow; lower temperatures restrict movement and promote cleavage-type cracking. Many BCC metals (e.g., certain steels) have a ductile-to-brittle transition temperature (DBTT)—above it they remain ductile; below it they can fracture suddenly. A classic example is structural steel: at ambient temperatures it can bend, but at very low temperatures it may fracture. Engineers therefore keep service temperatures above the DBTT or specify low-temperature grades. By contrast, most FCC metals (e.g., aluminum, copper) lack a sharp DBTT and remain ductile even when cold.
Composition and Alloying: The elements present and the phases they form strongly influence ductility. Pure metals such as gold, copper, and aluminum are typically very ductile. Adding solutes or creating hard second phases increases strength but often reduces ductility by hindering dislocation motion. In carbon steels, low carbon grades remain formable, whereas high carbon and tool steels are much less ductile unless tempered. Trace impurities also embrittle steel: sulfur can cause hot shortness, and phosphorus can cause cold embrittlement. Heat treatment adjusts the balance: quenched martensite is strong but has low ductility until tempered, while annealing restores ductility. Metallic glasses illustrate the limit; they are very strong yet usually brittle because crystal slip is absent.
Crystal Structure and Slip Systems: Ductility reflects how readily dislocations move. FCC metals such as aluminum, copper, nickel, and gold have many active slip systems and remain ductile even at low temperatures, with no sharp ductile-to-brittle transition. BCC metals such as ferritic steels, chromium, and tungsten require thermal activation for slip and often show a ductile-to-brittle transition, so ductility drops in the cold. HCP metals such as magnesium, zinc, and titanium at room temperature have fewer slip systems; without twinning or elevated temperature they deform poorly and may crack. In general, more available slip systems mean higher inherent ductility and better low-temperature performance.
Structural Resilience and Redundancy: Ductile systems can keep carrying load after local yielding by spreading stresses to neighboring members, reducing the chance of progressive collapse. That’s why bridges use ductile steels and why pipelines and cables are designed to bend or dent under ground movement or overload rather than rupture.
Ductility in Today’s Advanced Materials
Advanced materials face a classic strength–ductility trade-off: as we drive strength higher—via grain refinement or microstructural hardening—most alloys lose ductility and become prone to sudden fracture. Researchers address this with three main strategies. First, heterogeneous and nano-lamellar architectures pair ultra-strong regions with more compliant ones, blunting cracks while preserving strength; some systems now exceed 2 GPa in tensile strength with ~15–16% elongation. Second, TRIP/TWIP alloys (transformation-/twinning-induced plasticity) harness phase transformation or twinning during deformation to absorb energy, delivering high strength with substantial elongation—ideal for crashworthy automotive structures. Third, high-entropy alloys (e.g., CrMnFeCoNi) maintain exceptional toughness at cryogenic temperatures, challenging the notion that “cold means brittle.” Architected lattices and metal-matrix composites add a design lever, using geometry and reinforcements to tune the balance further. Why it matters: overcoming this trade-off enables lighter, safer cars and aircraft, more resilient buildings, and materials that still form, weld, and machine reliably. In short, the future of ductility is about structure—from the nanoscale to the part scale.
